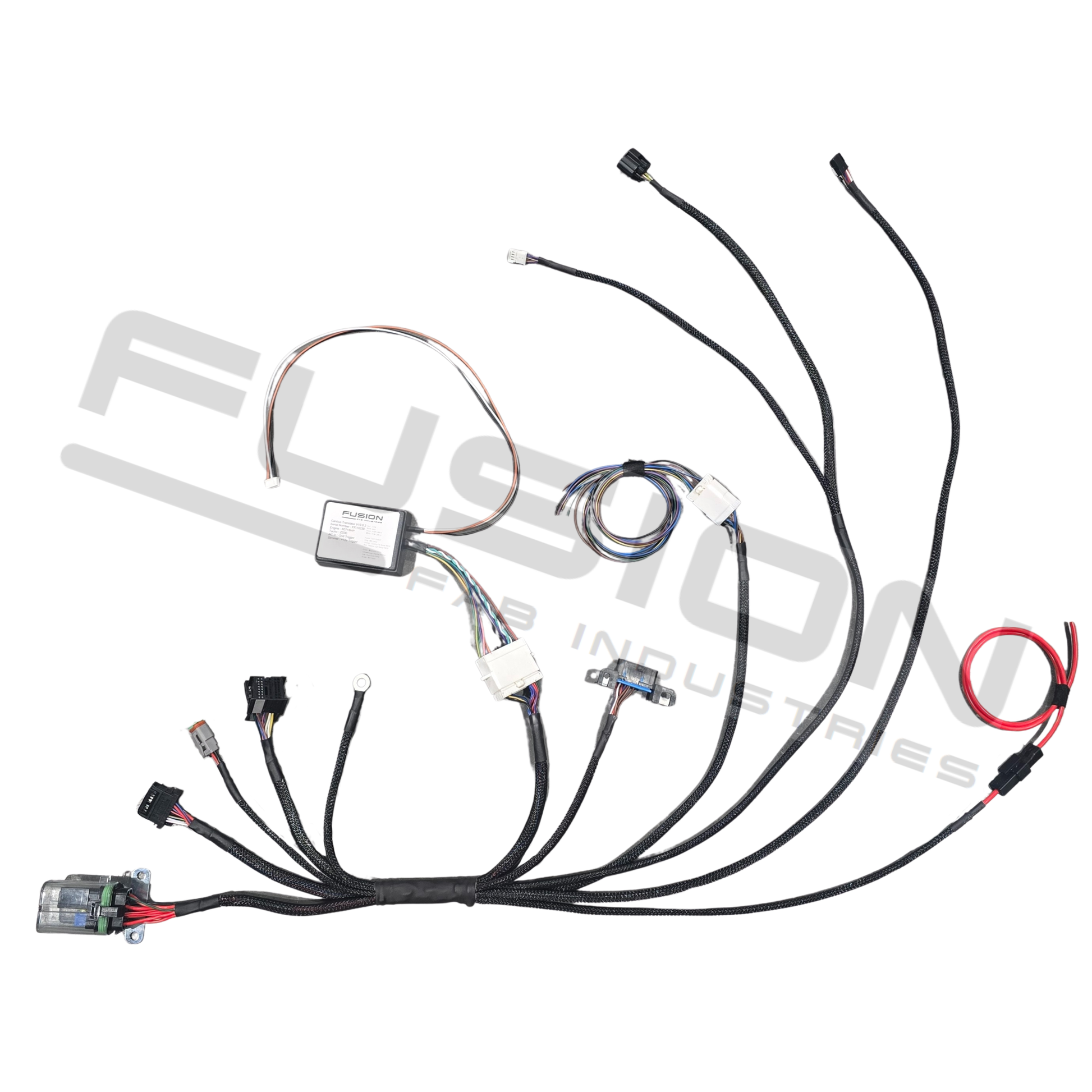

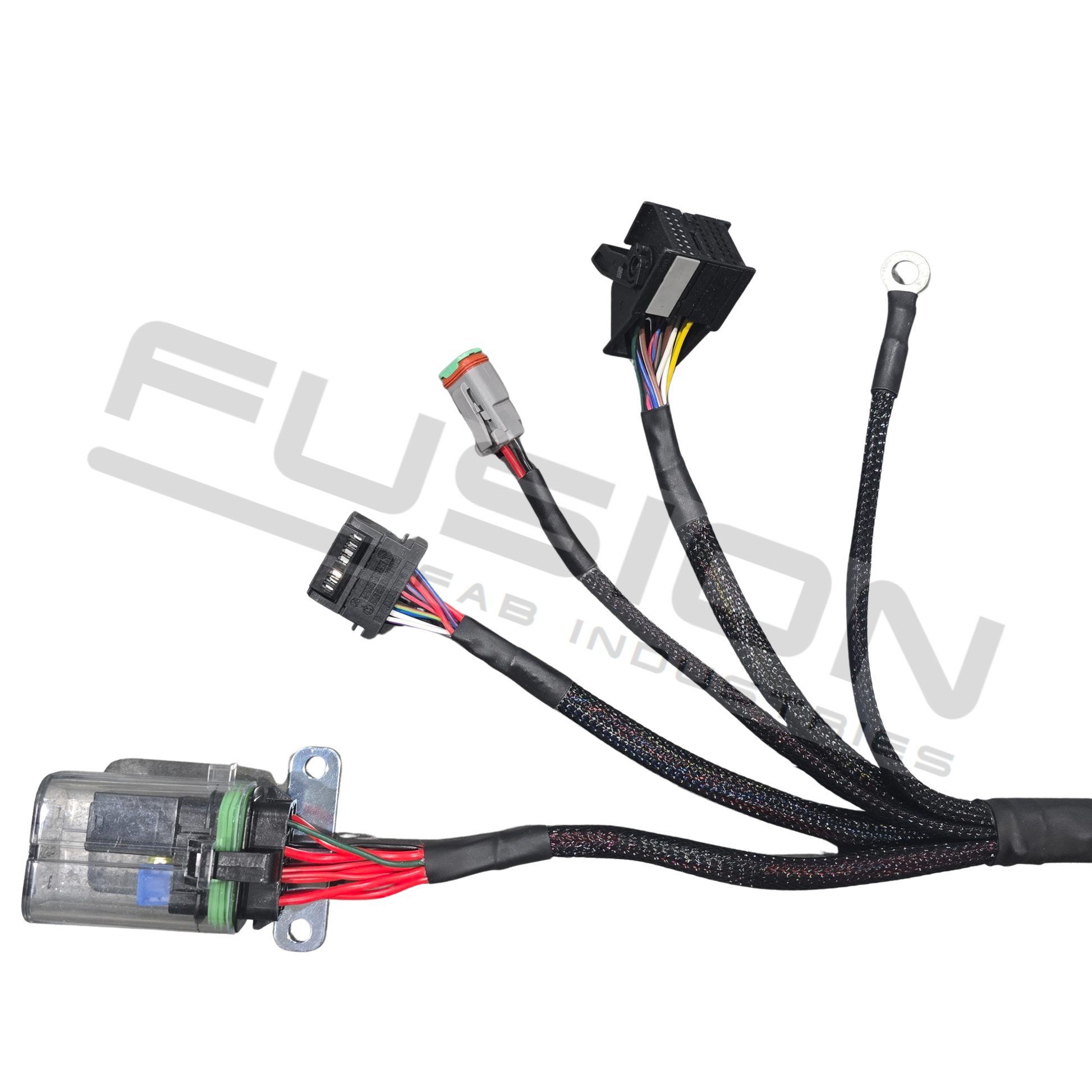

N57 8HP70x standalone wiring harness

N57 8HP70x standalone wiring harness
N57 8HP70x conversion wiring harness

Introducing our newest addition to the N57 swap platform.

This harness is a simplified version of our Plug and Play harness, that allows fitment into ALL makes and models. This can be used in all vehicle variants, GQ/GU Patrol, 40-105 series Land Cruiser and more..

Features include:
- Integrated CANBUS module with gear display. Can be optioned to suit Haltech iC7 or uC10
- Complete 8HP70x functionality. No additional controller required.
- New shifter, OBD, throttle and brake pedal connectors and wire.
- Integrated fuel pump fuse and relay. Wire direct to fuel pump of choice.
- Outputs for thermo fan relay, reverse light relay, P/N relay, A/C request, check engine light (MIL) and tachometer.

Post purchase:
- You will receive configuration sheets for CANBUS module and harness setup.

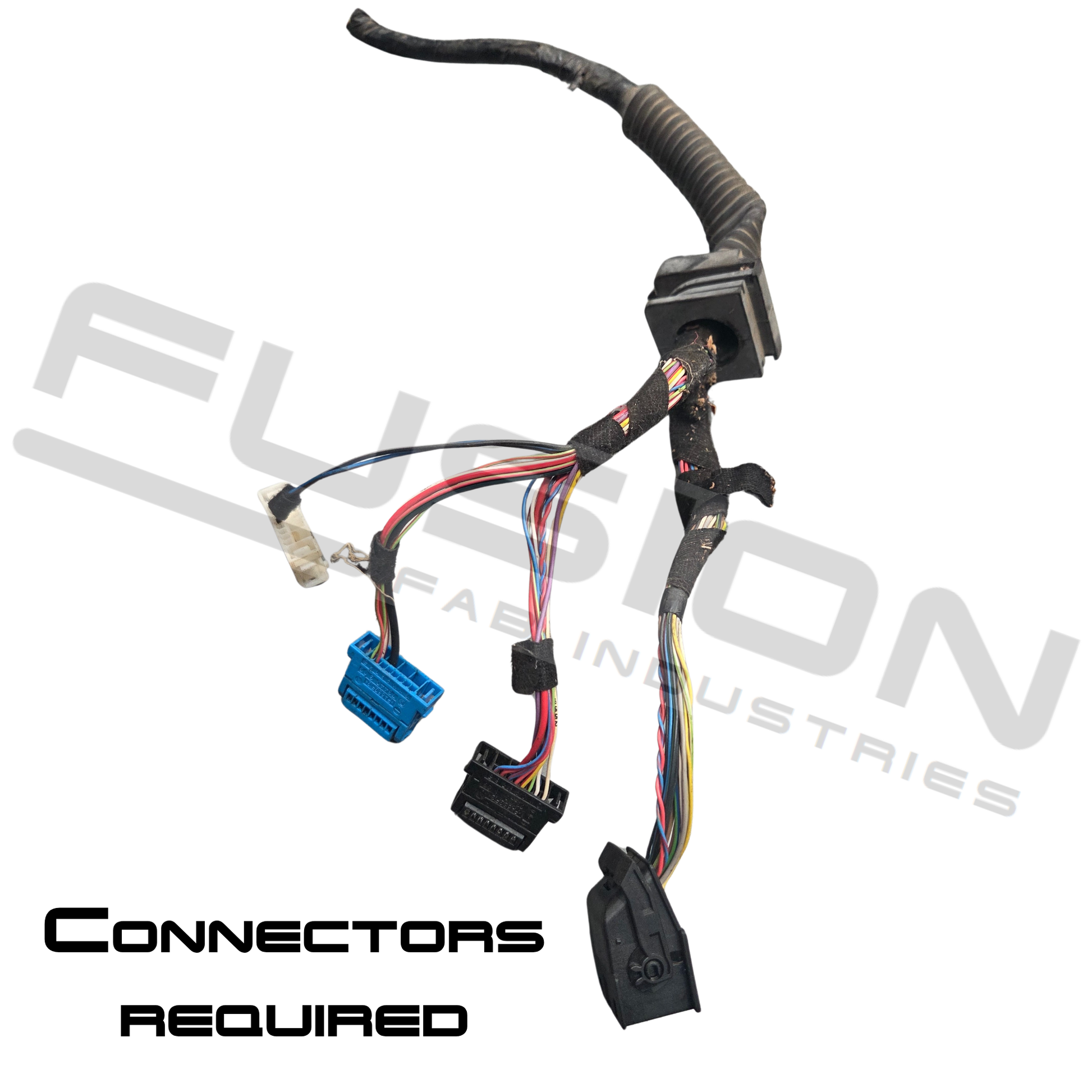

- Check 3rd photo in listing for the connectors required from donor vehicle in order to conduct harness works. These will need to be sent to Fusion Fab Industries.
- If you have any further questions, please reach out to our friendly staff

Skill level:
- Harness comes with a fitting guide and must be installed by a trained professional

Items to be wired in:
- Battery 12V positive
- IGN
- Ground
- Fuel pump
- Starter motor trigger
- Thermo fan relay
- Reverse light relay
- Park / Neutral relay
- Tacho (where applicable)
- Air Conditioning trigger (where applicable)
- Check engine light (where applicable)

Compatibility:
Suitable only for E70 LCI N57 30D and 40D with 8HP70x transmission.

Estimated manufacturing lead time of 8 -10 weeks. Please note, this time frame may be affected by Christmas / New Year and public holidays
