M57 PATROL PLUG AND PLAY WIRING

Regular price $2,749.00 AUD
Regular price Sale price $2,749.00 AUD
Sale Sold out
Tax included.
Payment

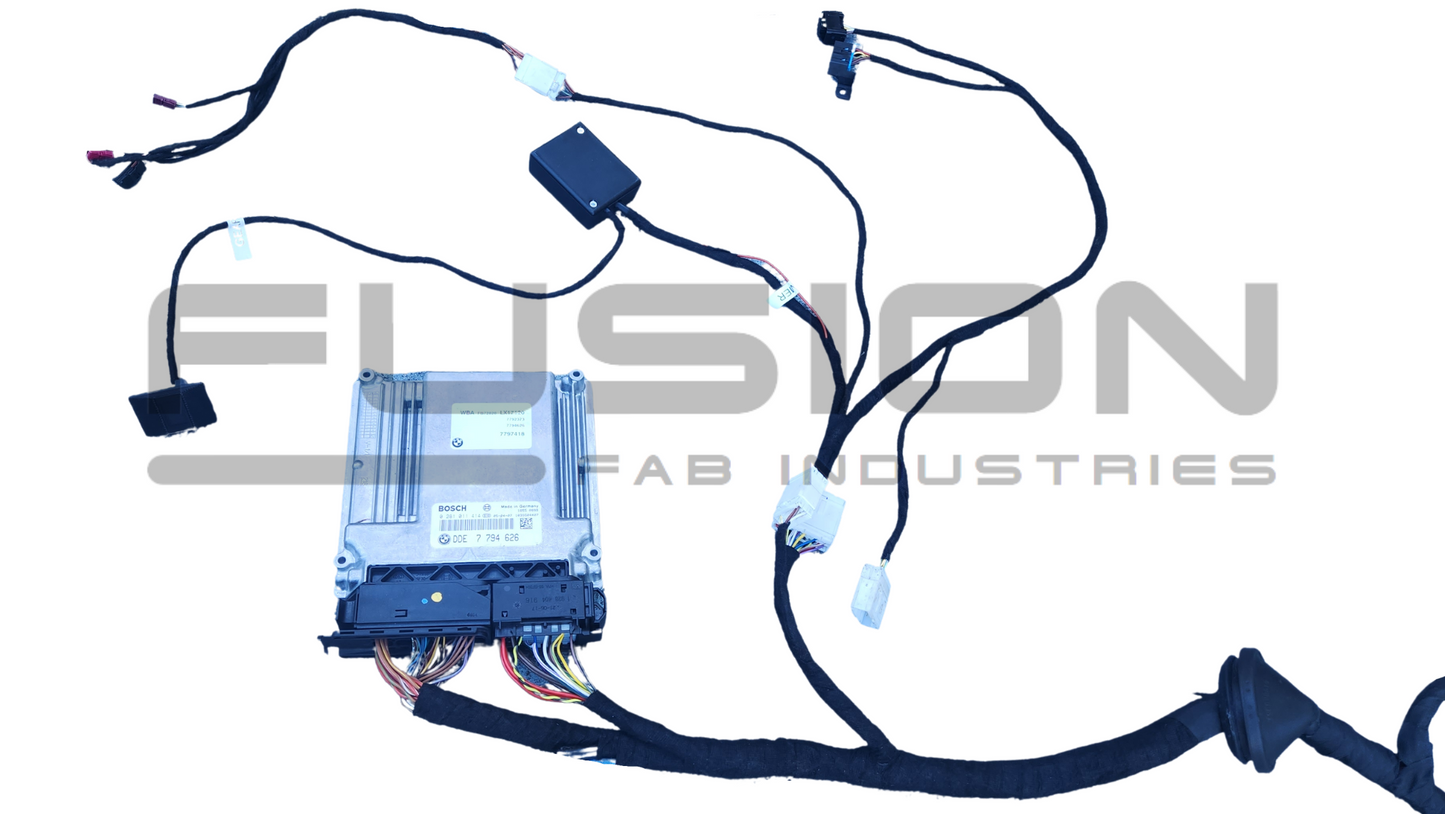

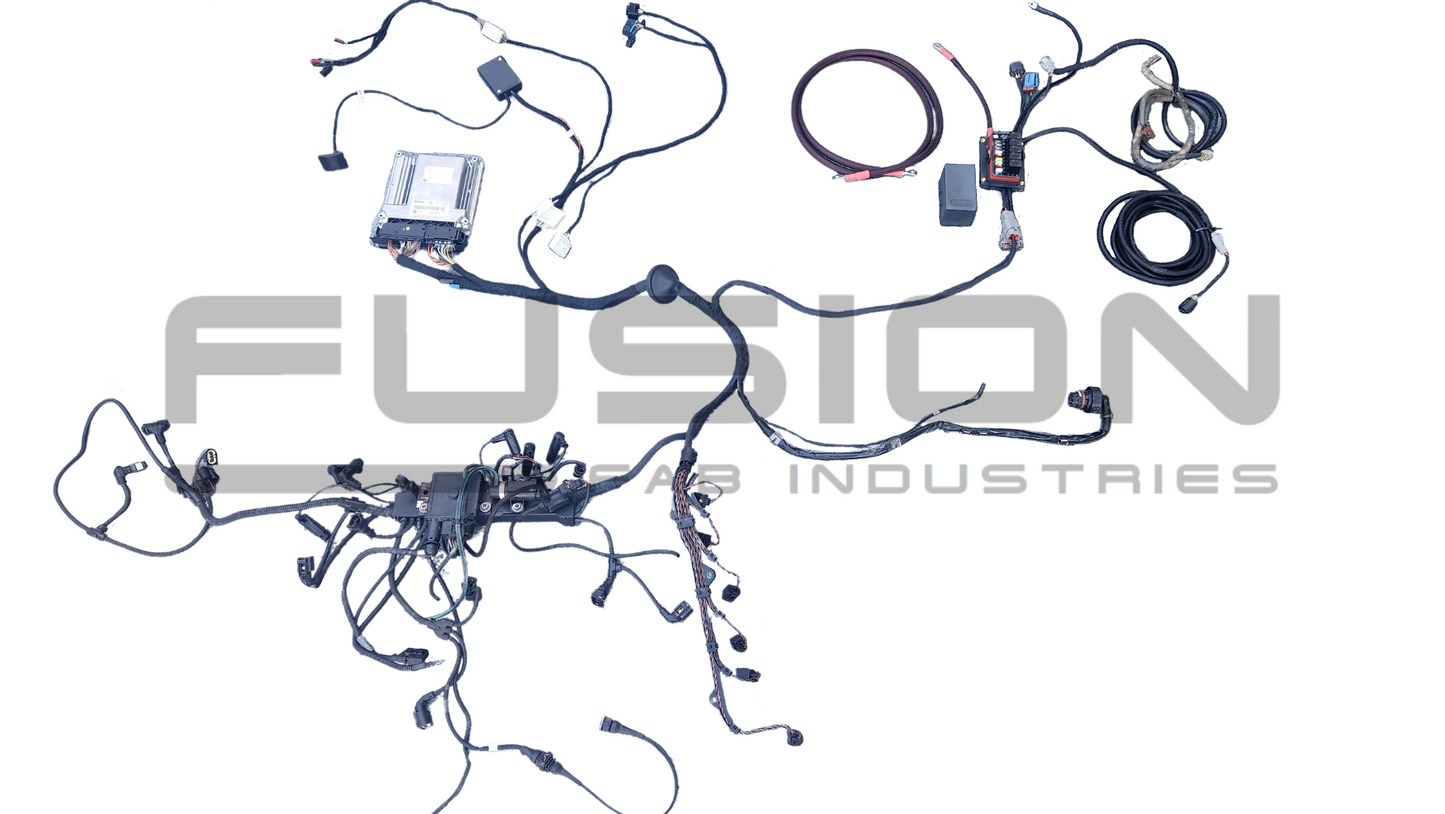

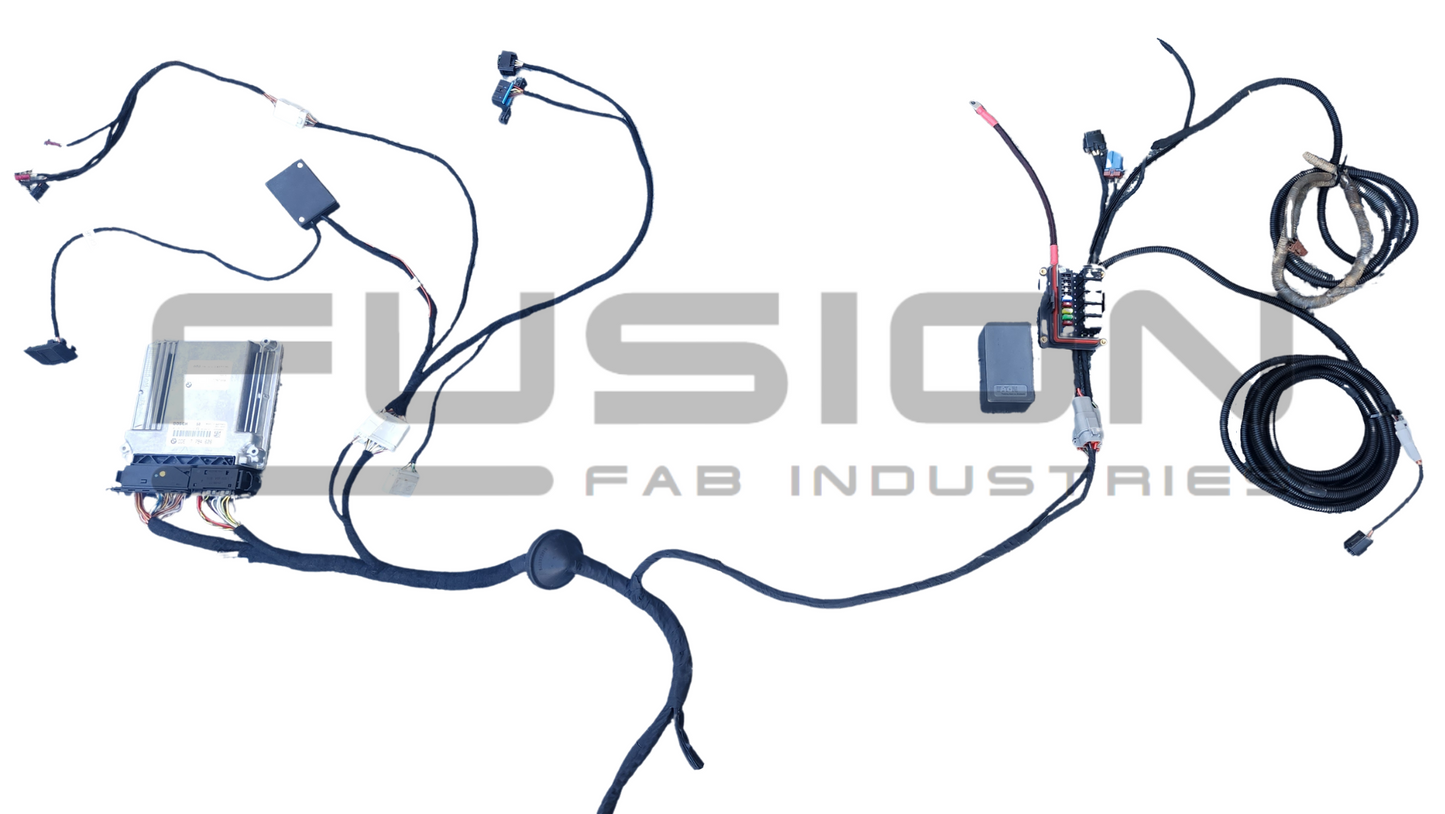

M57 ZF6 INTO NISSAN GU PATROL CONVERSION WIRING HARNESS

Direct plug and play M57 and ZF6 into Nissan GU Patrol 01 - 2015

A complete plug in, direct fit, turn key conversion wiring harness to suit GU models with ZD30 and TB48 engines only.

Some highlights include;

  • 2 wire connection (battery +ve and battery -ve)

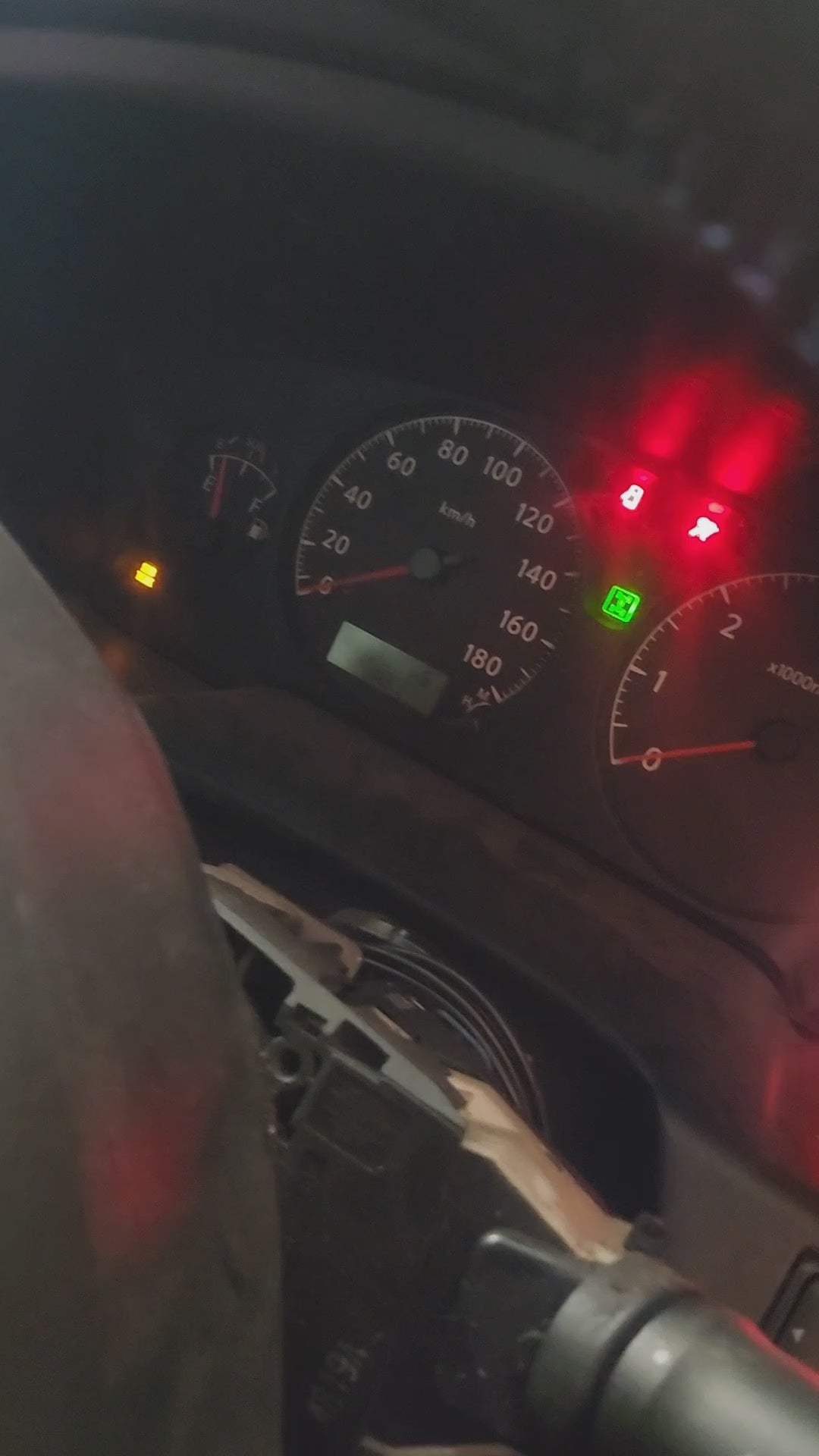

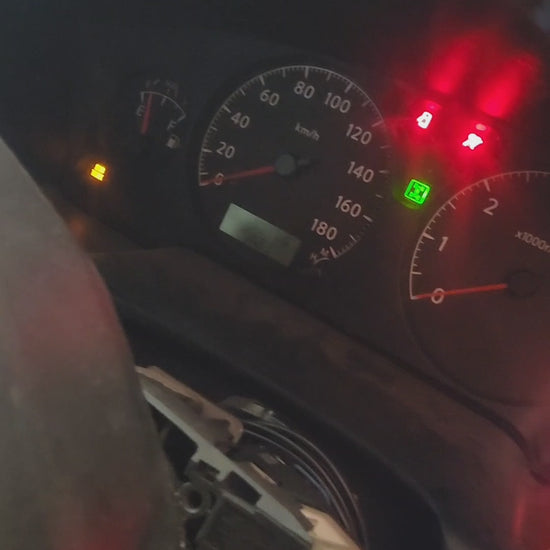

  • Complete dashboard functionality ( speedometer, tachometer, coolant temperature, oil pressure lamp, alternator lamp, MIL lamp, the addition of M57 oil level lamp)
  • Tachometer operation and correction
  • MIL lamp (check engine light)
  • Complete Nissan CANBUS compliant
  • Emissions, engineering and road worthy compliant (with correct tune)
  • Engine cooling fan, relay trigger (fan harness can be added upon request - additional cost involved)
  • Factory reverse light functionality
  • Factory air conditioning functionality
  • Fuel pump plug and play ability

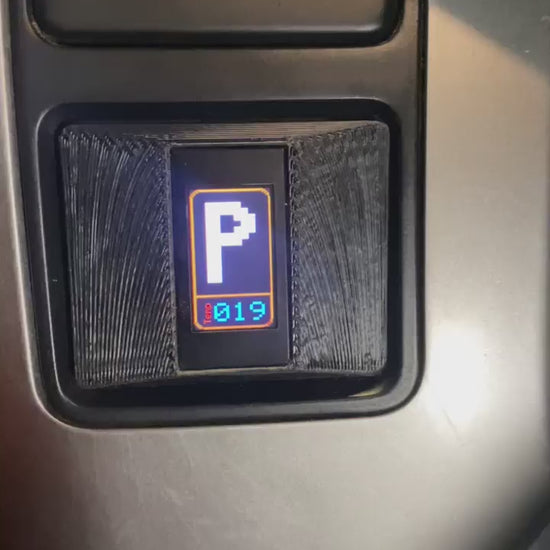

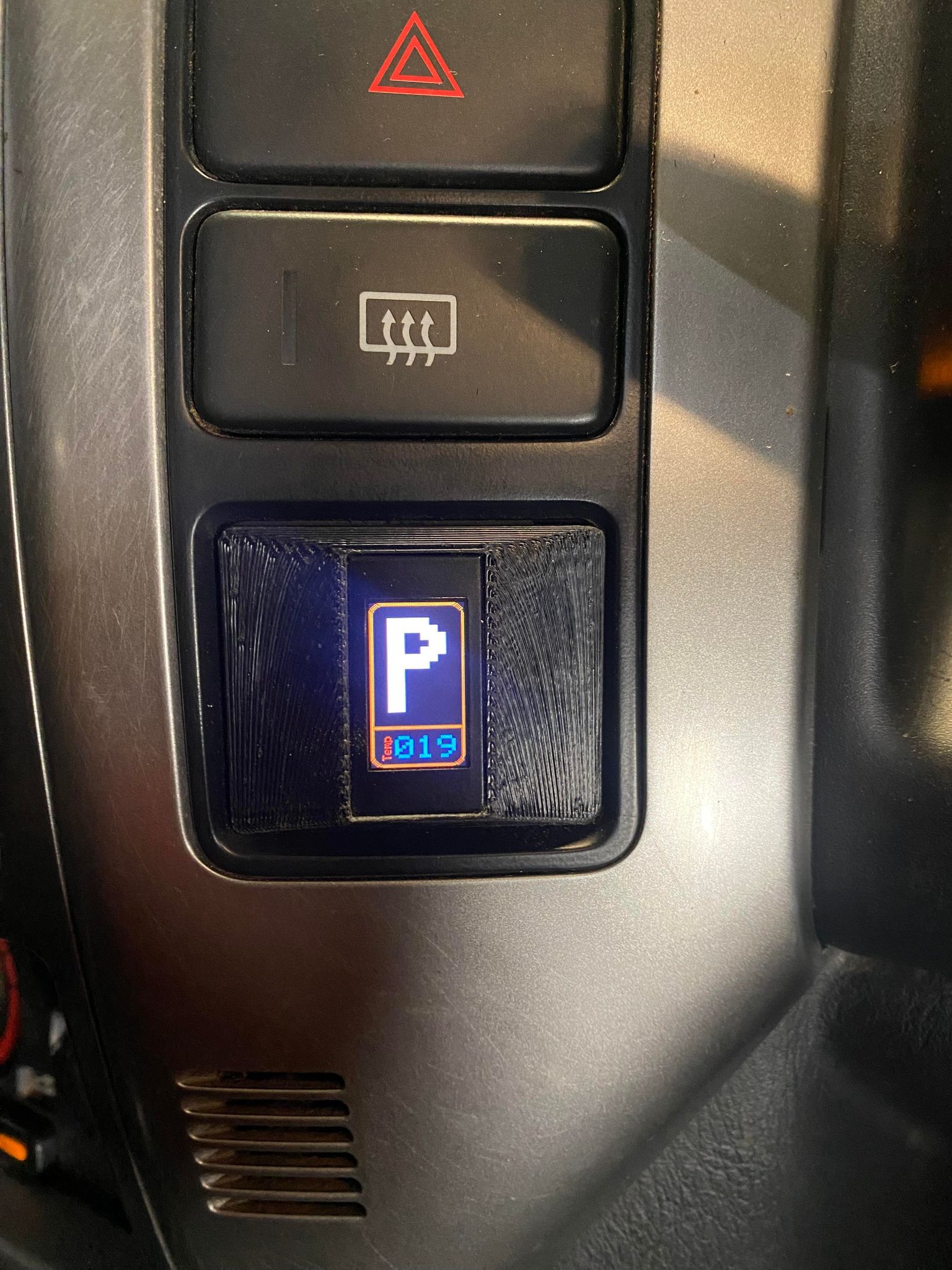

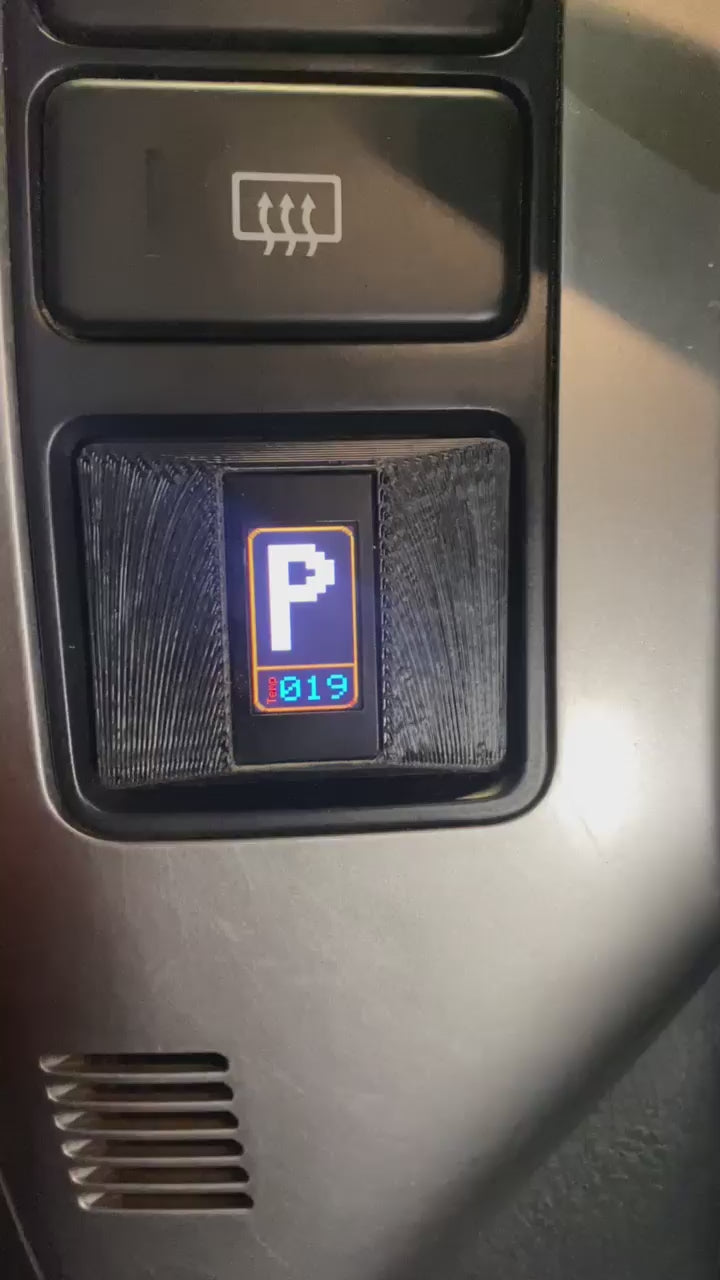

  • LED gear indicator complete with housing
  • IP66 fuse and relay box with stainless steel mounting
  • In cabin ECU and module mount with insulated mounting system, to aid protection from mud, dust, water, etc
  • Zero soldier joints for harness longevity, all added wires are plug to plug, meaning zero joins in critical circuits.
  • Brand new Genuine Bosch ECU connector and terminals
  • Brand new pedal, OBD plugs and terminals
  • Cruise control compatibility
  • Turn key ready package
  • Trade enquiries welcome

This can be configured to suit either LHS or RHS battery location.

We also offer a starter motor cabling kit.

PLEASE NOTE,  THIS SERVICE IS CARRIED OUT ON THE CUSTOMERS HARNESS. WE REQUIRE THE FOLLOWING ITEMS TO CONDUCT THIS SERVICE;

Entire M57 engine harness, BMW shifter plugs and length of harness, entire Patrol engine harness, entire Patrol gearbox harness.

Upon purchase of this item, we will be contact with details of shipping your harness and assist with any additional questions you may have.

Please note: this is currently only to suit GU Patrol with M57N/N2 with 6HP26x/28x. Manual enquires are welcomed.

*shipping will be calculated and payment will be required upon completion of harness.

CURRENT DELIVERABLE DATE MAY / JUNE 2024
