N57 PATROL Conversion Kit - PRE ORDER
Couldn't load pickup availability
N57 PATROL Conversion Kit - PRE ORDER

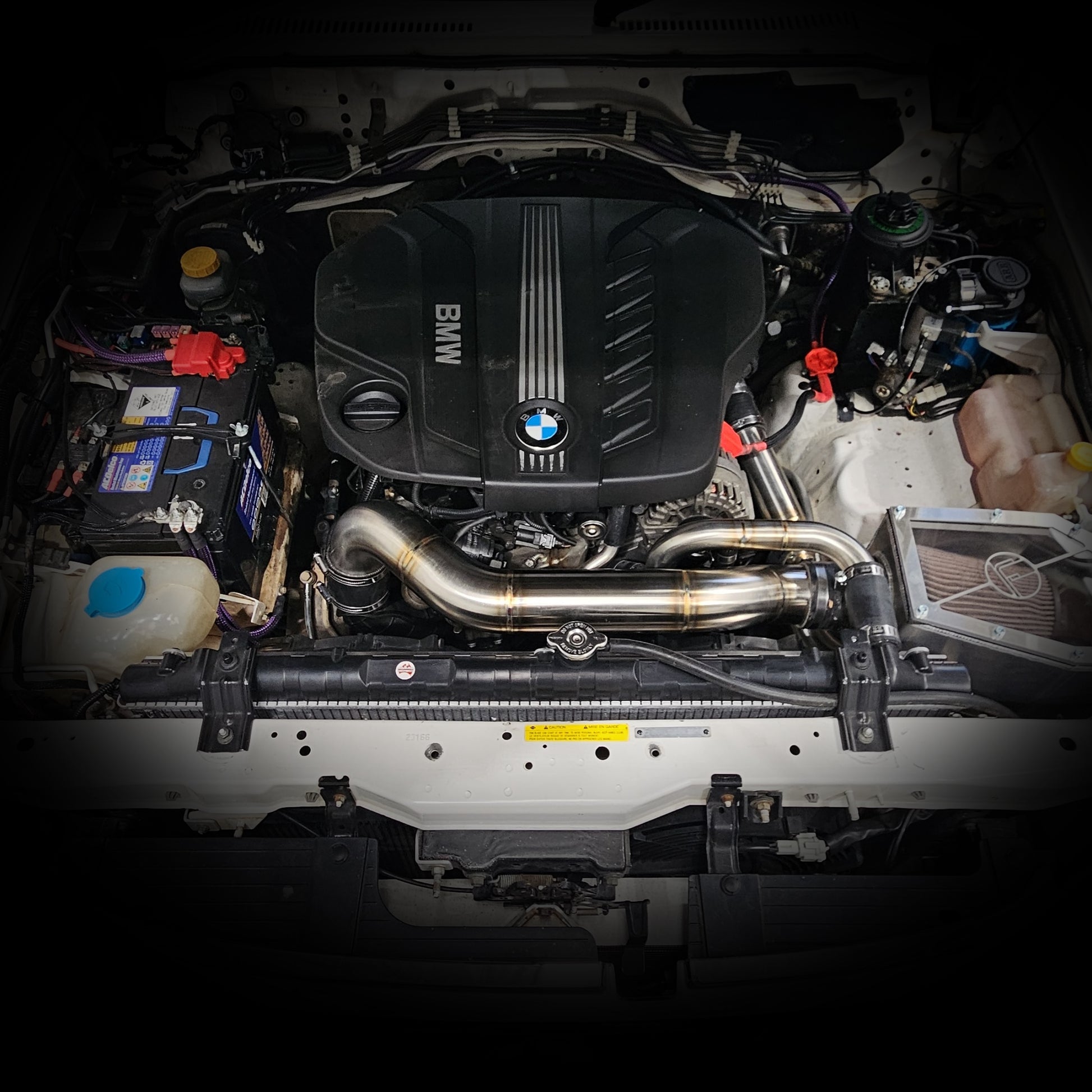

Introducing Fusion Fab Industries' N57 conversion kit to suit your Nissan Patrol.
Compatible with most Y60 and Y61 Nissan Patrol.

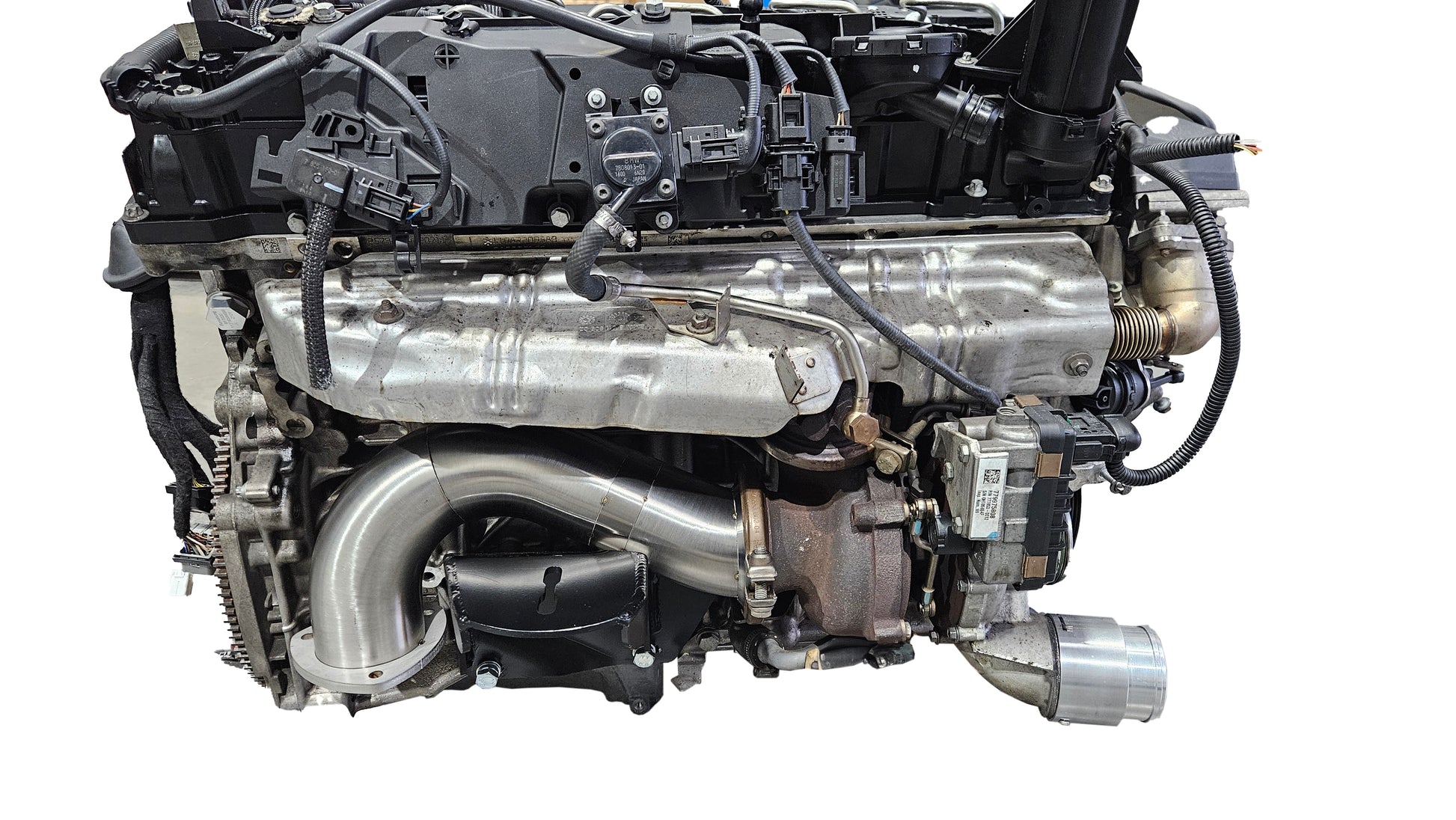

N57 (E-series) is available is BMW X5/6 vehicles between 2010 and 2013. The N57 has 245HP (30D) and its mated from factory with the ZF 8 speed transmission (8HP70x). When fitting this N57/ZF8 conversion kit, there is zero need for any aftermarket controller, as we utilise the OE BMW ECU and TCM.
This listing is strictly PRE ORDER of the FFi N57 Patrol conversion kit.
Conversion components will be available from late March / April 2025, with PnP wiring from May.

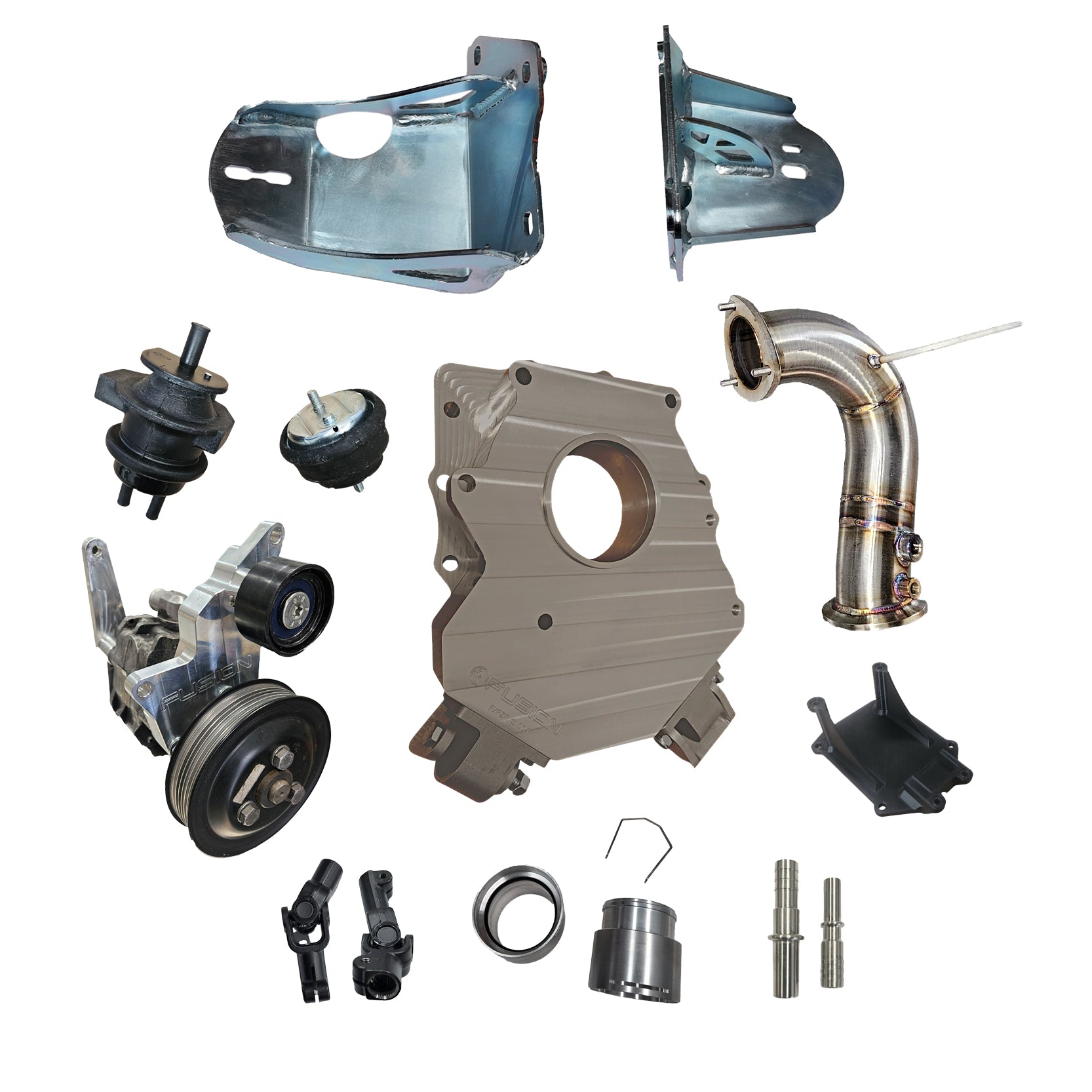

N57 Patrol kit includes:
- BMW ZF8 to Nissan Patrol transfer case adaptor

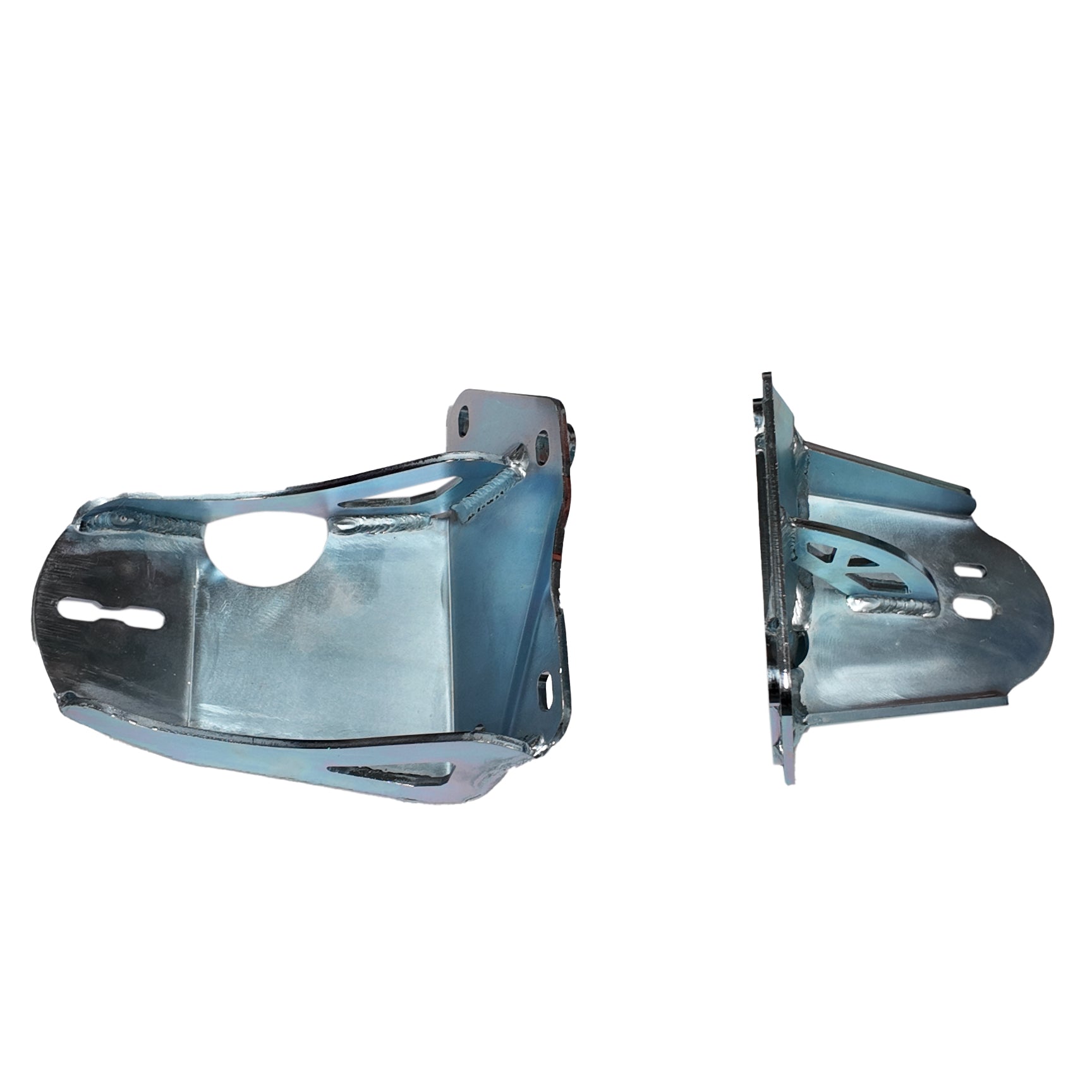

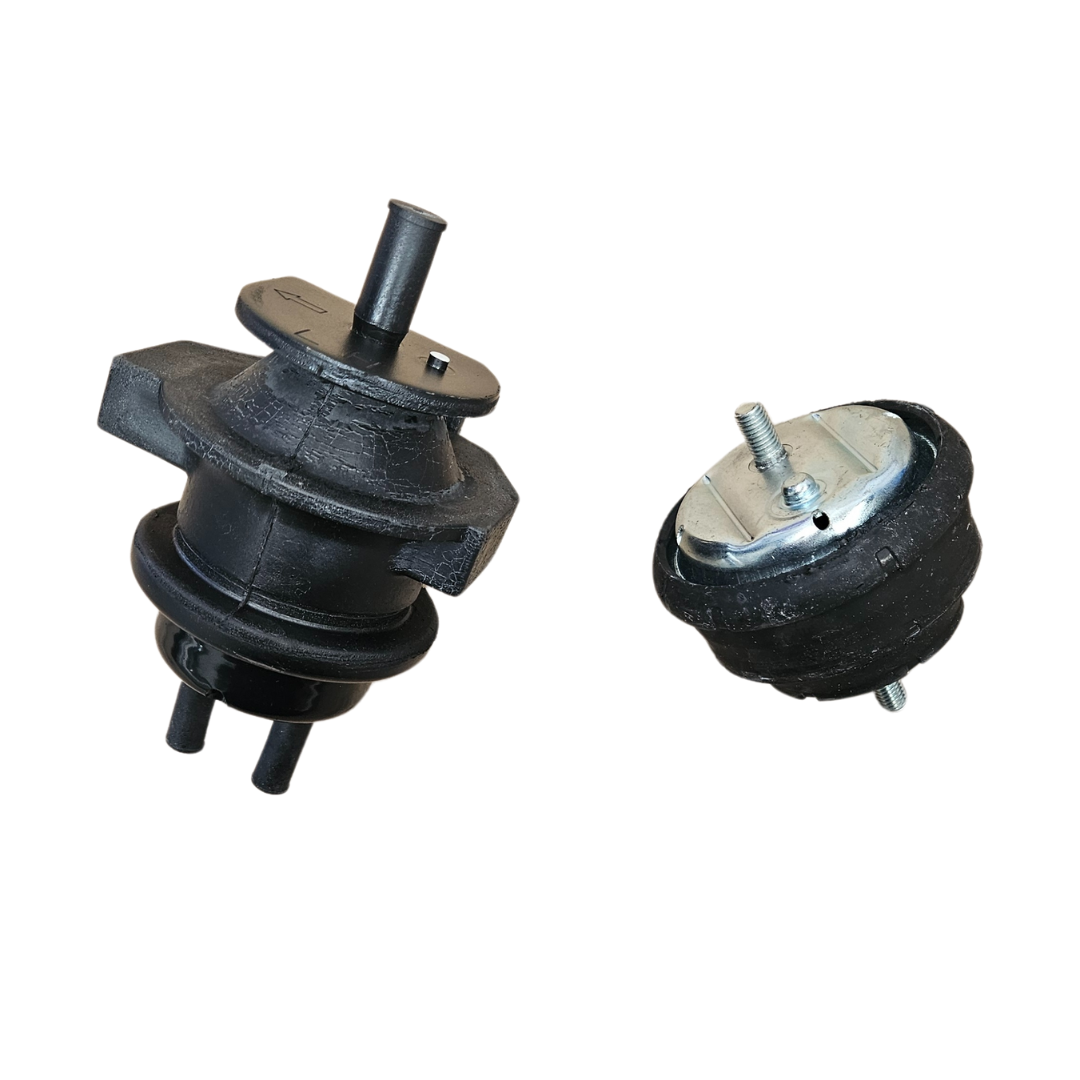

- Engine mounts with insulators (ZD30 chassis)*

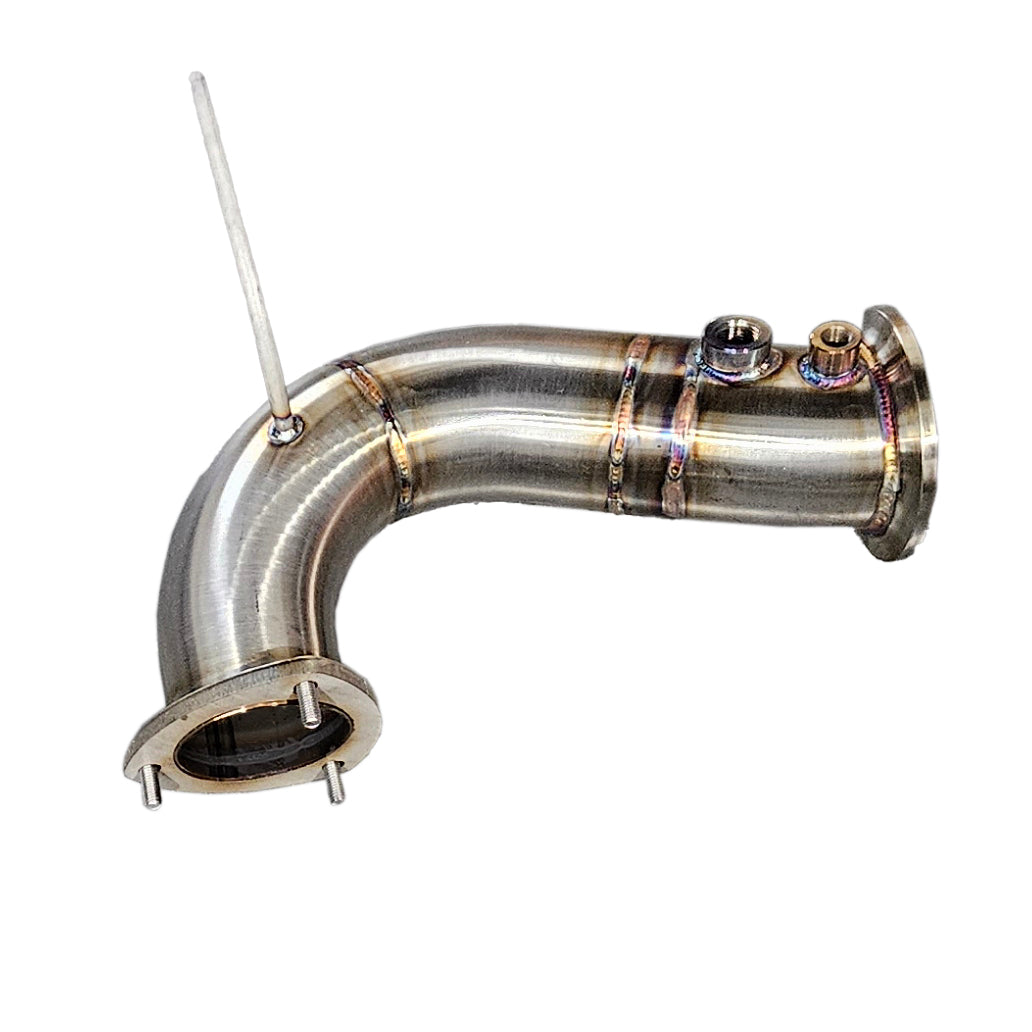

- Dump pipe

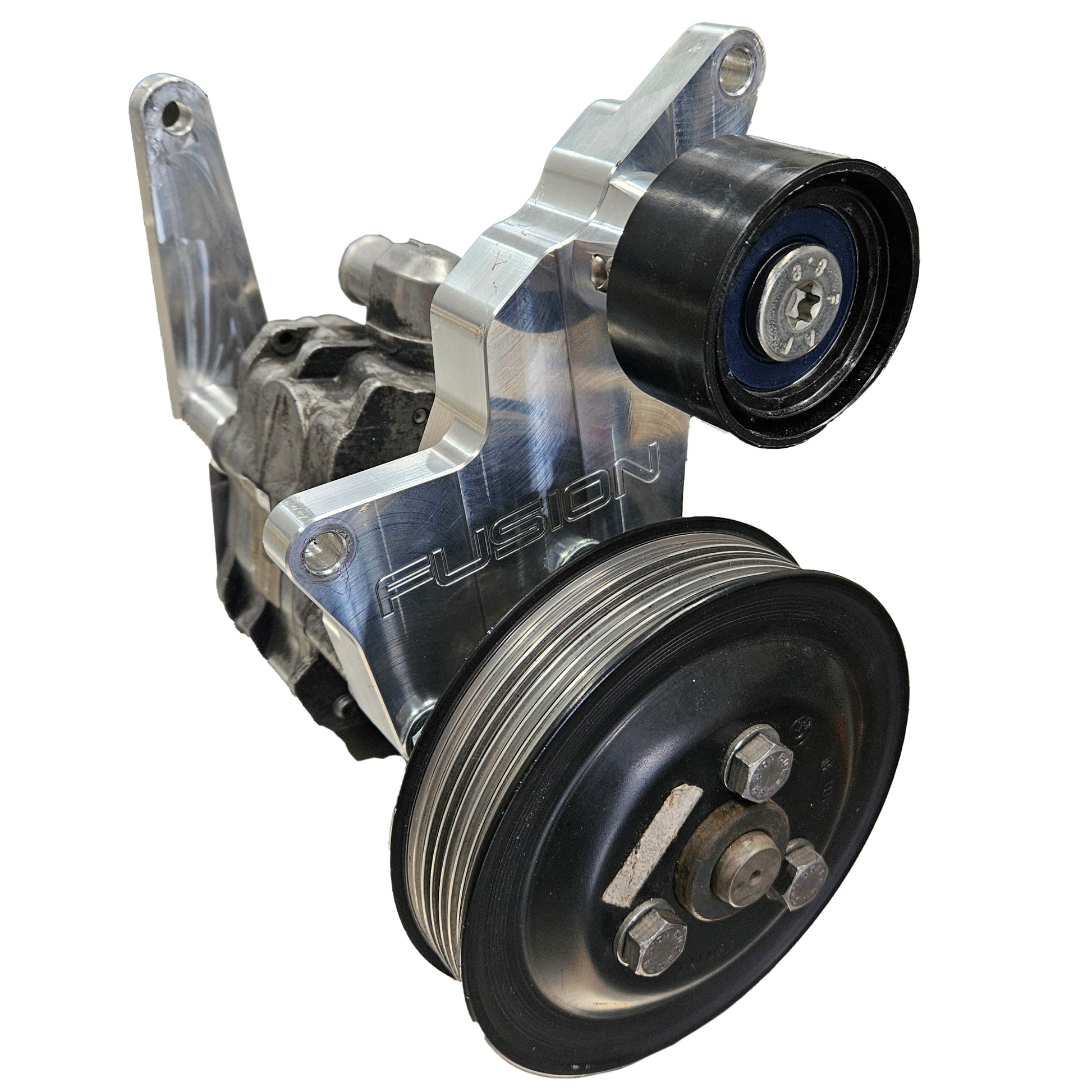

- Power steering pump relocation bracket with new idler pulley**

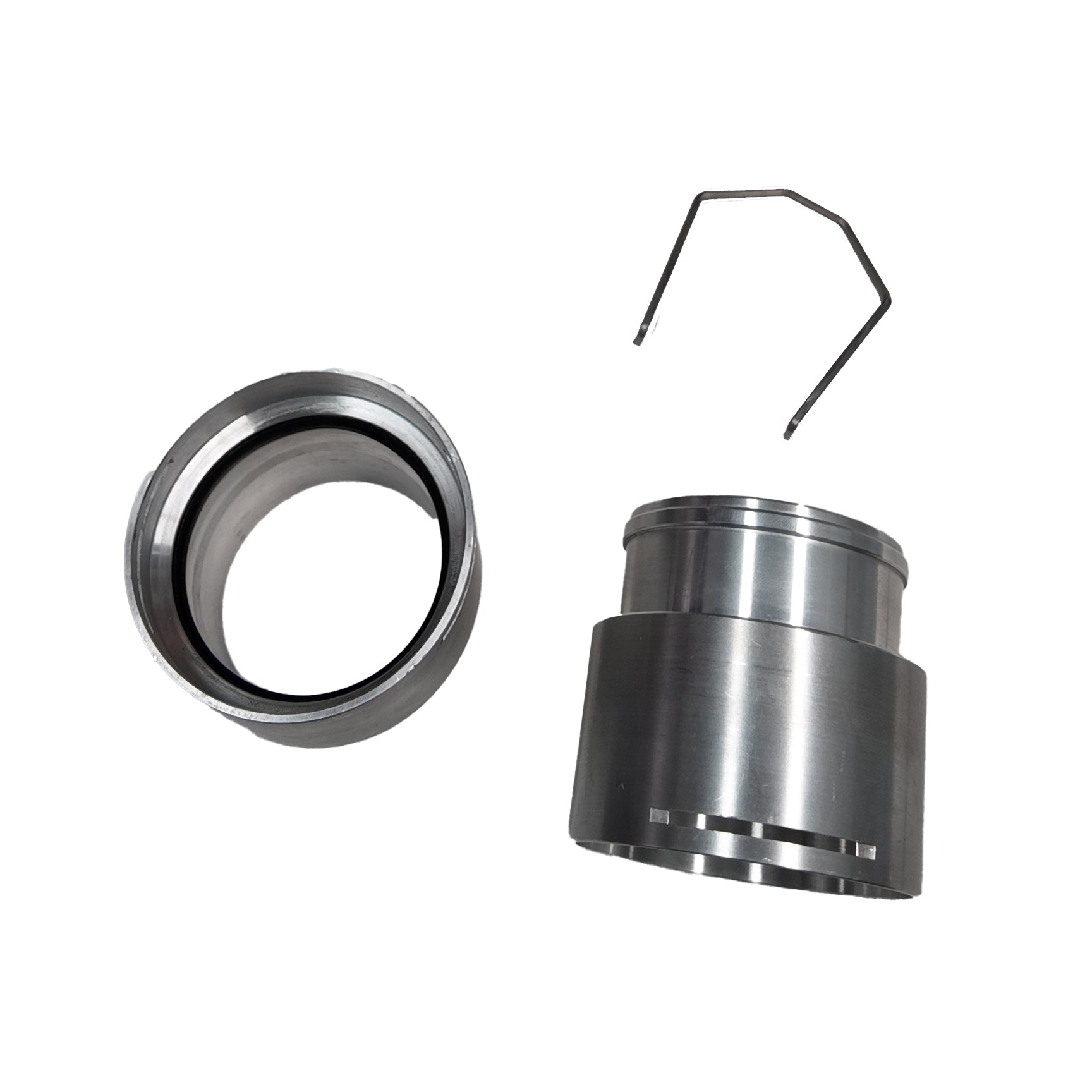

- Quick connect intercooler couplings

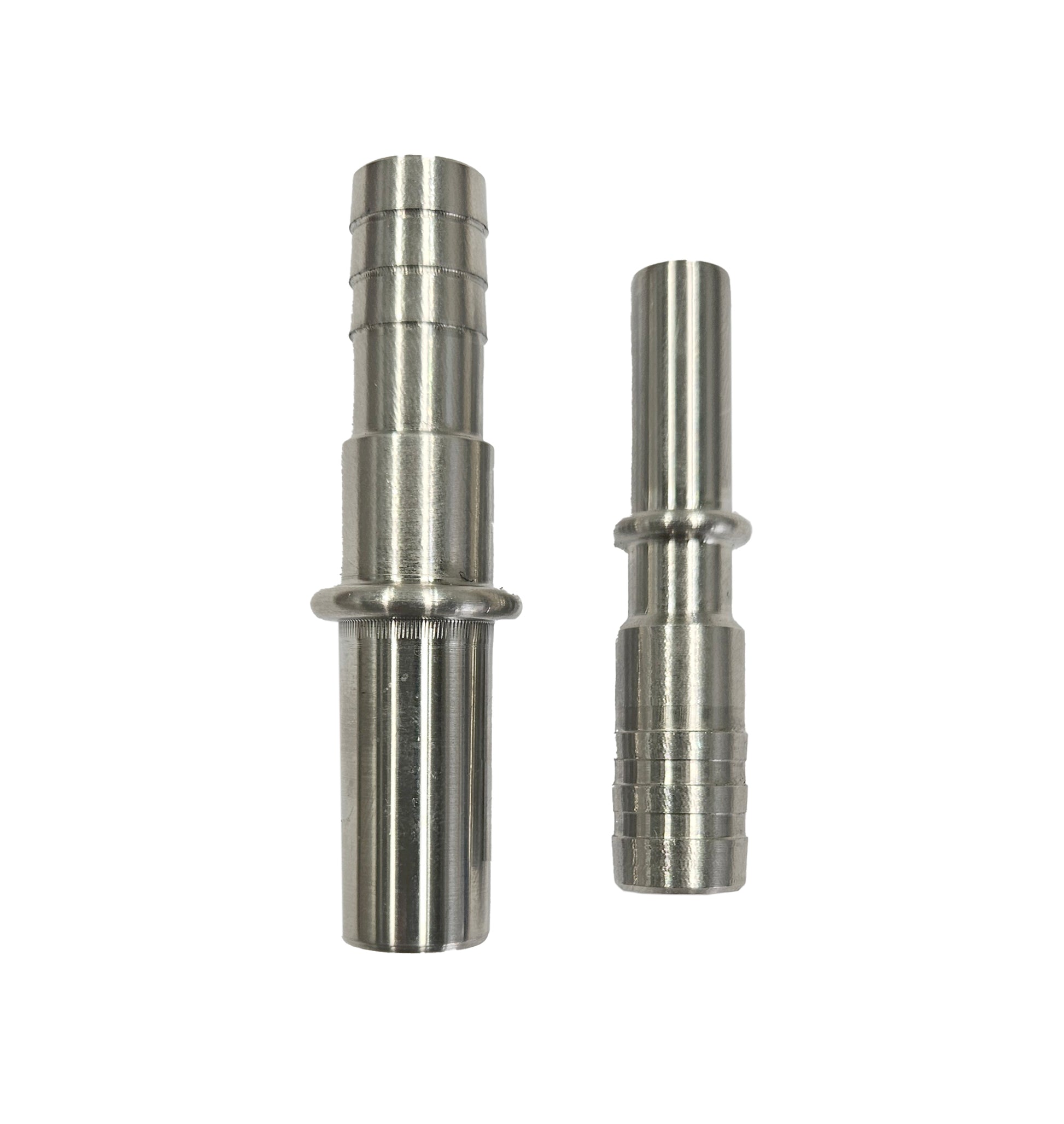

- Quick connect fuel line fittings

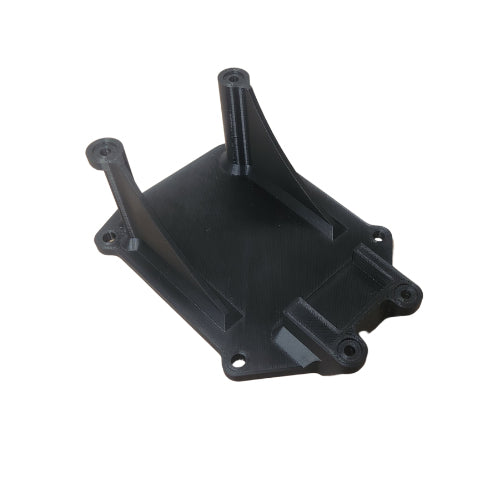

- Gear selector mount
- EGR blanking plate
- 80 series steering coupling
- Plug and Play conversion harness***
- ECU immobiliser off and remap
- TCM immobiliser off and XHP remap
- *If using TD / TB / RB chassis, weld on mounts are required. These are an additional cost, please contact for pricing.
- ** New idler pulley is supplied with this kit. This is the exact idler pulley that is found on the N57. This relocation bracket utilises the factory 7PK dual sided drive belt.
- *** Plug and Play harness for GU ZD only. If you plan on using this kit in another vehicle, this harness will come with wire tails, that will need to be wired into your vehicle by a qualified auto electrician, please contact if you would like more information.
Compatible only with N57 8HP70x configurations, found in E70LCI X5 and E71LCI X6. Compatible engine codes: N5730A (30D - single turbo) and N5730B (40D - twin turbo)
N57N kits coming mid - late 2025.
Pricing for the N57 Patrol conversion kit with items listed above is $9249 incl GST plus shipping. $3000 deposit payable to secure your N57 Patrol conversion kit.
